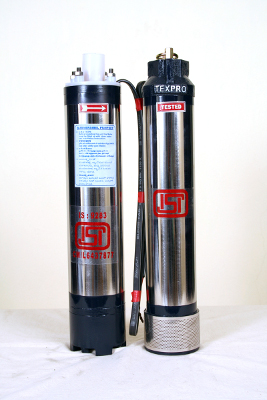

Single or multistage centrifugal pumps in pump shroud or in ring section design. Radial or mixed flow hydraulic systems; Suction casing fitted between motor and pump with strainer to protect the pump from coarse particles / sand in the fluid. Pumps with check valve (non-return valve) in option are supplied. Available with threaded particularly suitable for vertical installation in narrow deep wells. Additional bearings are fitted depending on the number of stages. Stainless Steel inserts are fitted to the impeller. The impeller hub is protected by stainless Steel inserts are fitted depending on the number of stages. This design improves the starting torque & has the effect that solid particles such as sand are propelled outside.
Irrigation, Domestic, Civil water supply, Fountains, Industrial, Rural water supply, Fire fighting, Pressure boosting units, Ponds, Gardens, Sprinkler systems and Mining.
| Performance Chart | |||
|---|---|---|---|
| Type | HP Range | Head Range | Phase |
| 4" | 0.75 HP to 3.0 HP | Upto 900 feet (100mtrs) | Single Phase |
| 4" | 1.0 HP to 11.0 HP | Upto 2000 feet (195mtrs) | Three Phase |
| S.No | Motor HP | Stage | Feet |
|---|---|---|---|
| 1 | 0.75 Hp | 10 | 160 |
| 2 | 0.75 Hp | 12 | 200 |
| 3 | 1.0 Hp | 10 | 160 |
| 4 | 1.0 Hp | 12 | 200 |
| 5 | 1.0 Hp | 15 | 240 |
| 6 | 1.5 Hp | 16 | 260 |
| 7 | 1.5 Hp | 12 | 200 |
| 8 | 1.5 Hp | 24 | 360 |
| 9 | 1.5 Hp (Eco) | 18 | 290 |
| 10 | 1.5 Hp | 18 | 290 |
| 11 | 1.5 Hp | 21 | 340 |
| 12 | 2.0 Hp | 20 | 320 |
| 13 | 2.0 Hp | 24 | 400 |
| 14 | 2.0 Hp | 30 | 480 |
| 15 | 3.0 HP | 15 | 240 |
| 16 | 3.0 HP | 20 | 320 |
| 17 | 3.0 HP | 24 | 400 |
| 18 | 3.0 HP | 30 | 500 |
| 19 | 3.0 HP | 40 | 640 |
| 20 | 3.0 HP | 20 | 300 |
| 21 | 3.0 HP | 24 | 360 |
| 22 | 3.0 HP | 30 | 450 |
| 23 | 3.0 HP | 40 | 600 |
| 24 | 5.0 Hp | 40 | 640 |
| R3 Model | ||||||
|---|---|---|---|---|---|---|
| S.No | HP | Stage | Model | Phase | Head in feet upto | Delivery size |
| 1 | 1.0 | 8 | R3 | 1 | 200 | 1 1/4" |
| 2 | 1.0 | 12 | R3 | 1 | 300 | 1 1/4" |
| 3 | 1.5 | 14 | R3 | 1 | 350 | 1 1/4" |
| 4 | 1.5 | 16 | R3 | 1 | 400 | 1 1/4" |
| 5 | 2.0 | 18 | R3 | 1 | 450 | 1 1/4" |
| 6 | 2.0 | 21 | R3 | 1 | 520 | 1 1/4" |
| 7 | 3.0 | 25 | R3 | 1 | 600 | 1 1/4" |
| 8 | 3.0 | 25 | R3 | 3 | 600 | 1 1/4" |
| 9 | 4.0 | 30 | R3 | 3 | 730 | 1 1/4" |
| 10 | 5.0 | 35 | R3 | 3 | 850 | 1 1/4" |
| 11 | 6.0 | 40 | R3 | 3 | 975 | 1 1/4" |
| 12 | 7.5 | 45 | R3 | 3 | 1000 | 1 1/4" |
| R5 Model | ||||||
| S.No | HP | Stage | Model | Phase | Head in feet upto | Delivery size |
| 1 | 4.0 | 25 | R5 | 3 | 580 | 1 1/4" |
| 2 | 5.0 | 30 | R5 | 3 | 700 | 1 1/4" |
| 3 | 6.0 | 35 | R5 | 3 | 820 | 1 1/4" |
| 4 | 7.5 | 40 | R5 | 3 | 940 | 1 1/4" |
| R7 Model | ||||||
| S.No | HP | Stage | Model | Phase | Head in feet upto | Delivery size |
| 1 | 4.0 | 20 | R7 | 3 | 460 | 1 1/2" |
| 2 | 5.0 | 25 | R7 | 3 | 575 | 1 1/2" |
| 3 | 6.0 | 28 | R7 | 3 | 640 | 1 1/2" |
| 4 | 7.5 | 30 | R7 | 3 | 690 | 1 1/2" |
| R11 Model | ||||||
| S.No | HP | Stage | Model | Phase | Head in feet upto | Delivery size |
| 1 | 4.0 | 8 | R11 | 3 | 160 | 2" |
| 2 | 5.0 | 10 | R11 | 3 | 200 | 2" |
| 3 | 6.0 | 12 | R11 | 3 | 240 | 2" |
| 4 | 7.5 | 15 | R11 | 3 | 300 | 2" |
